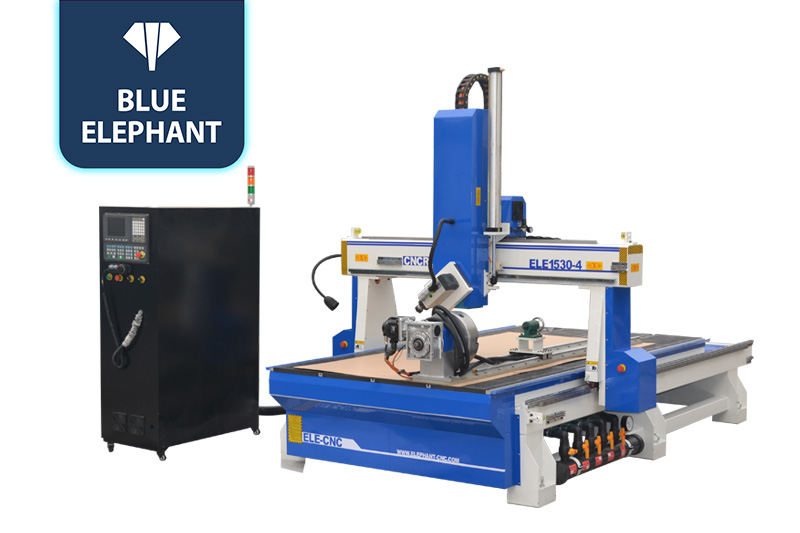

Top Ranked 4 Axis CNC Router Machine with Rotary Device for 3D Wood Carving to Buy in Singapore, India, Estonia

☆This 3D CNC router machine is designed to process various 3D parts with the rotary spindle and the rotary device. The rotary device can be removed from the worktable if no cylindrical work is needed. This type of rotary device saves many costs than the one with a fixed rotary device on the machine.

Rotary Axis CNC Router Machines Video

  • The 4 axis CNC router with a swing spindle can process the top, left, and right sides of a workpiece in one operation, reducing clamping times.

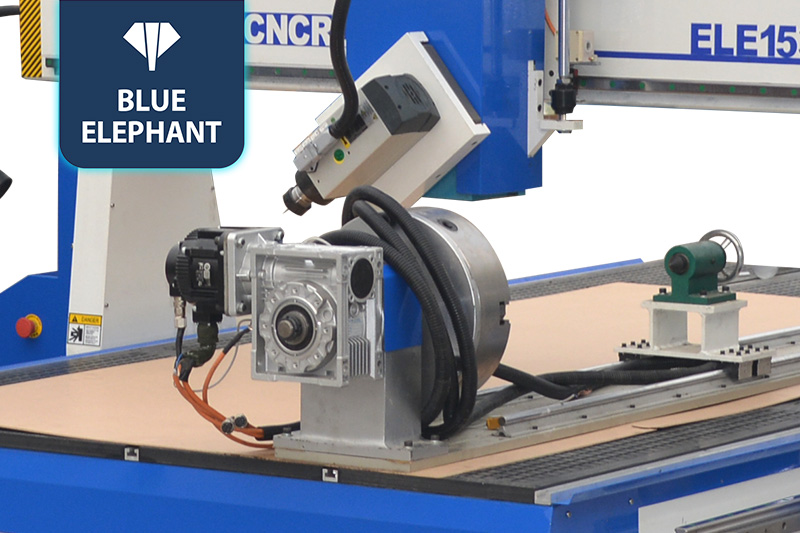

  • It is provided with a movable rotary device that can be fixed on and removed from the worktable freely.
  • All parts and components of this CNC router machine adopt famous-brand or high-quality products to ensure long service life and safe and reliable operation.

Parameters

Serial Number S20190821M
Model ELECNC-1530
Working area 1500x3000x600mm
Spindle 4.5KW china HQD air cooling spindle
Spindle speed 24000rpm
Control system SYNTEC 6MB 4 axis control system
Motor and driver 850W leadshine servo motor and drivers
Working Table T-slot working table
limit switch Japan OMRON limit switch
Lubrication system Automatic lubrication system
Rotary device 300mm diameter rotary device
X,Y,Z Transmission X,Y-helical rack pinion,Z ball screw
X,Y,Z Rail Sweden SKF ABBA linear guide/Taiwan PMI,25mm
Frame structure New type thicker and bigger heavy duty 10-12mm
Voltage 220V/380V,3phase(customized)
Dust collector 3.0kw Double bags dust collector system
Software Compatibility ARTCAM 2018/Powermail/UG

Application

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
