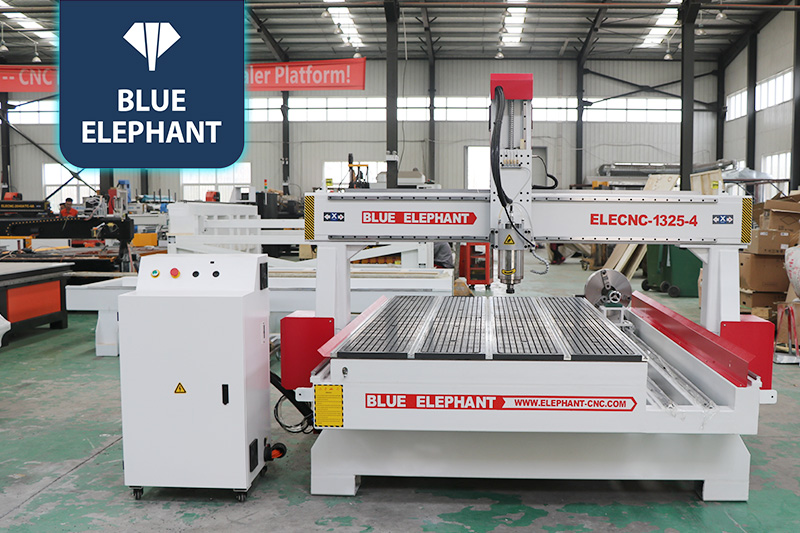

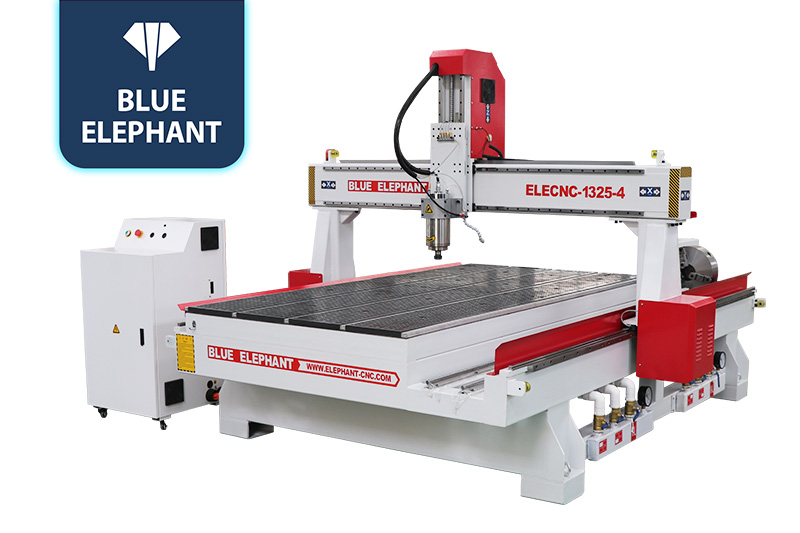

Best Selling ATC CNC Router Machine with Rotary Axis at Favorable Price in San Jose, California, United States
☆This is the most popular 4 x 8 rotary ATC cnc router. It can realize the processing of work-pieces like cutting, milling, drilling and other functions. With its vacuum table and automatic lubrication system, it can enables more sample’s processing.
Rotary Axis CNC Router Machines Video

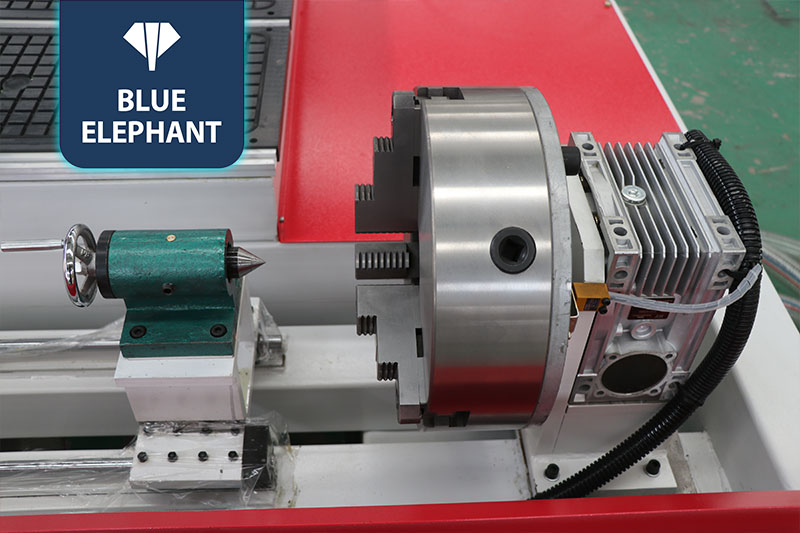

- Equipped with rotary device, it can complete 2D and 3D woodworking.
- Equipped with heavy-duty square steel tube machine with strong structure and rigidity to ensure long-term stable operation.
- Adopt HIWIN linear square guide rail, with high load capacity, stable operation, high precision and long service life.
Parameters
| Model | ELECNC1325-4 |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 300mm, option: 200mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 3kw water cooling spindle |
| Inverter type | 3.7kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Mach3 for 4 axes |
| Driving system | Stepper motor and Leadshine driver |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Manual lubrication system |
| Tool calibration | Manual tool sensor calibration |

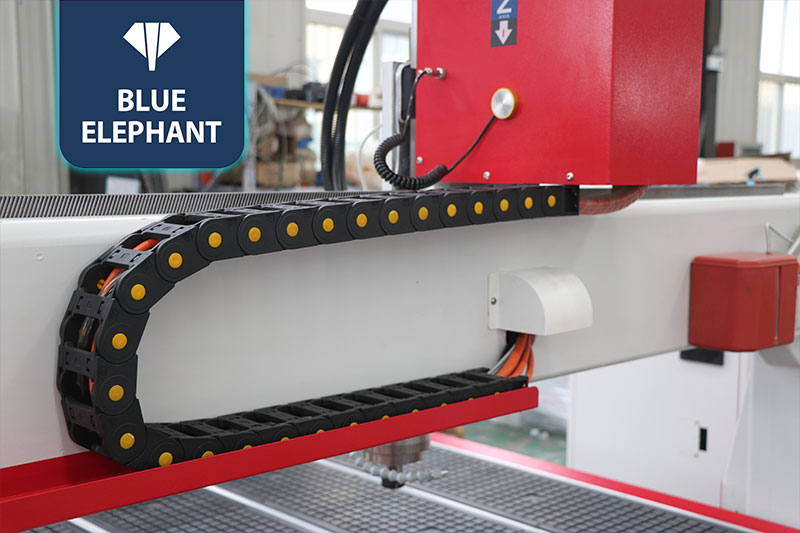

| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 45m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application

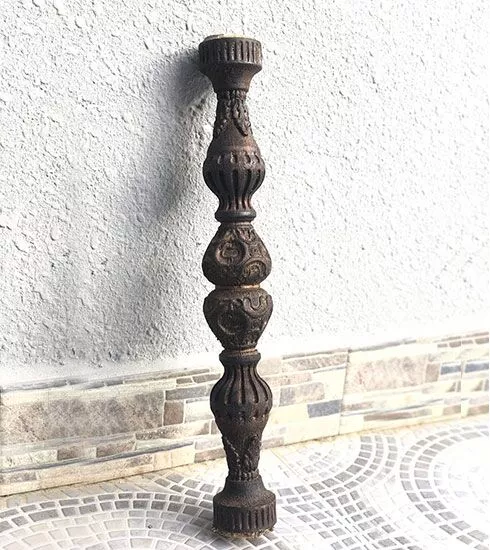

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
