Purchase Compact Single Head Hinge Drill for Drilling Hingle Holes in Italy, Varuatu, Poland

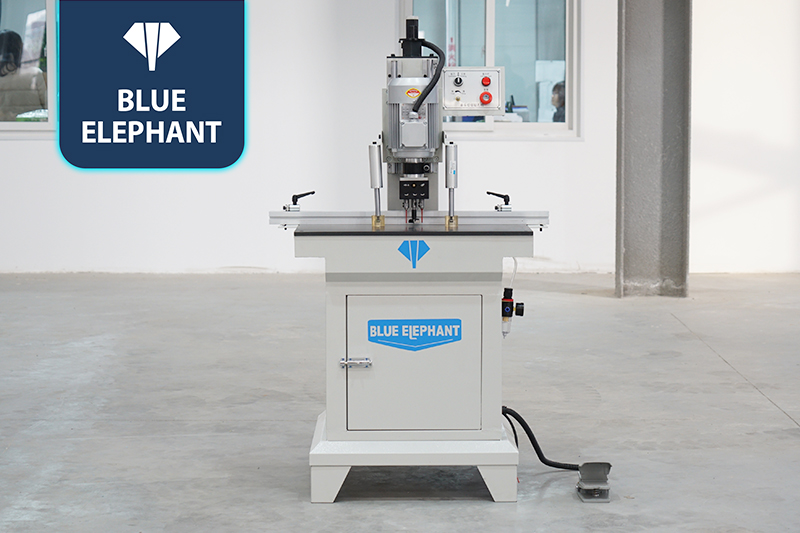

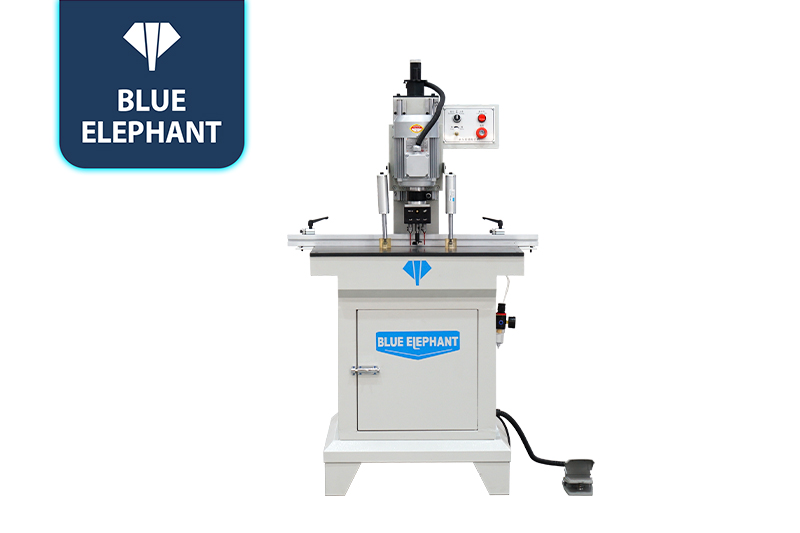

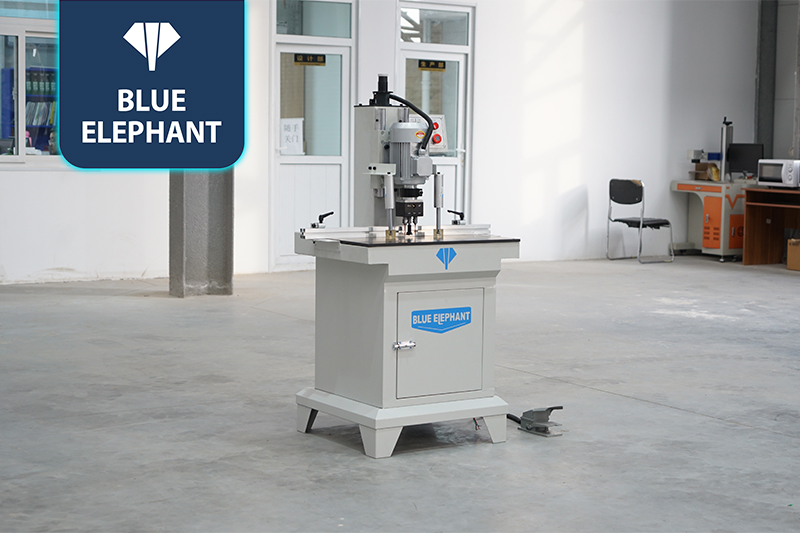

☆This is a small hinge drilling machine with an affordable price and simple operation to drill hinge holes in wooden furniture. It can drill three holes at one time with drill bits of different models.

Subsidiary Equipments Video

  • It adopts a foot switch to control the operation, which is easy, convenient, and labor-saving.

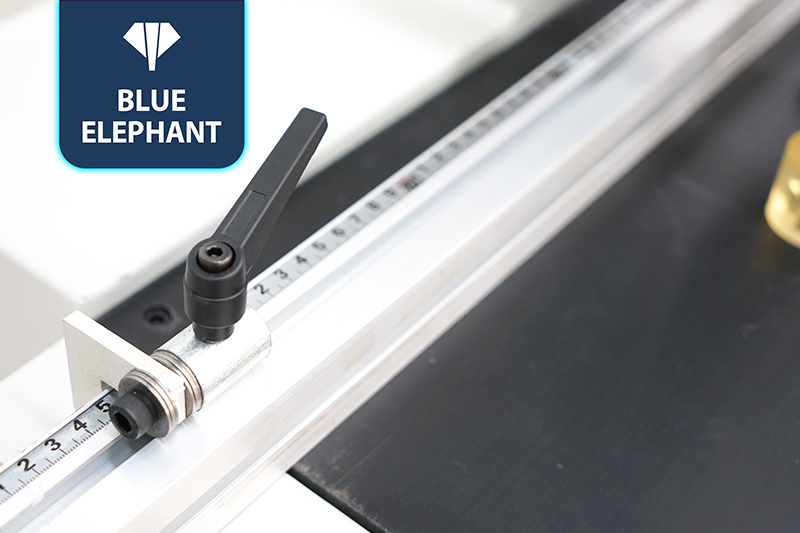

  • The hinge drill is provided with a positioning baffle and accurate scale, and the baffle can be adjusted according to the work needs.
  • With an affordable price, low noise, and simple operation, this drilling machine is an ideal option for cabinet manufacturers.

Parameters

Voltage 380V/220V
Total power 1.5kw
Motor speed 2880r/min
Processing length ≤1000mm
Drilling diameter ≤35mm
Drilling depth ≤50mm
Number of spindles 3*1set
Dimensions 1000*800*1550mm
Working size 800*600mm
Weight 100kg
single-head-hinge-drill-machine-171
single-head-hinge-drill-machine-5
single-head-hinge-drill-machine-4
single-head-hinge-drill-machine-3
