Best Selling Single Table 5 Axis CNC Machining Center at Cost in US, Italy, Canada

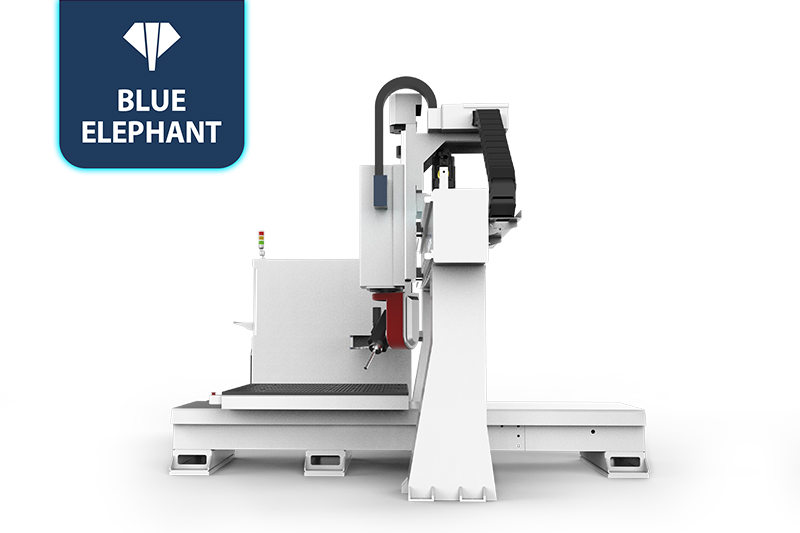

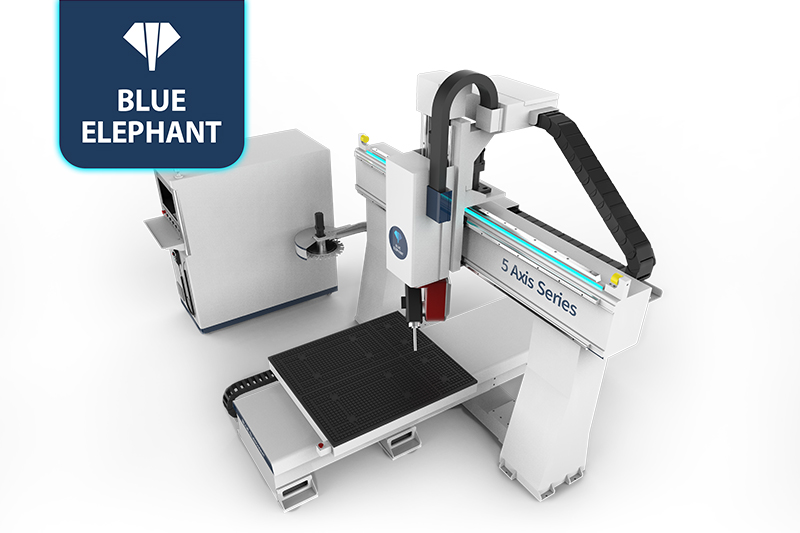

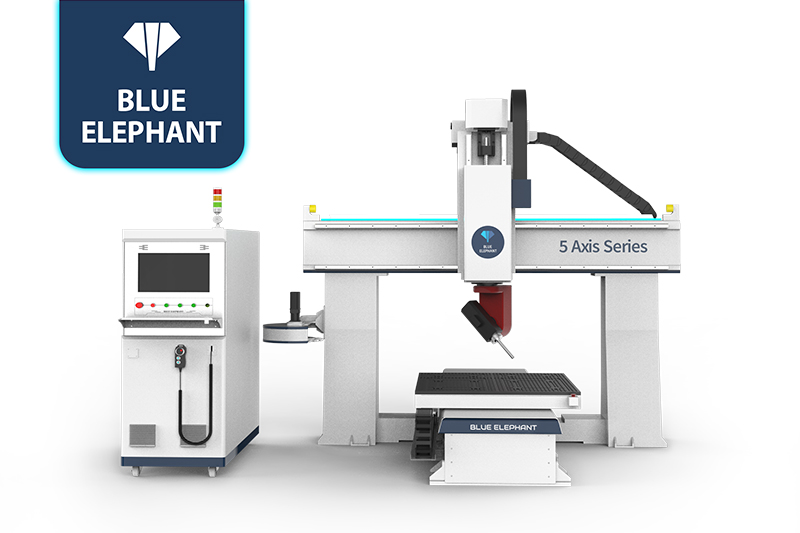

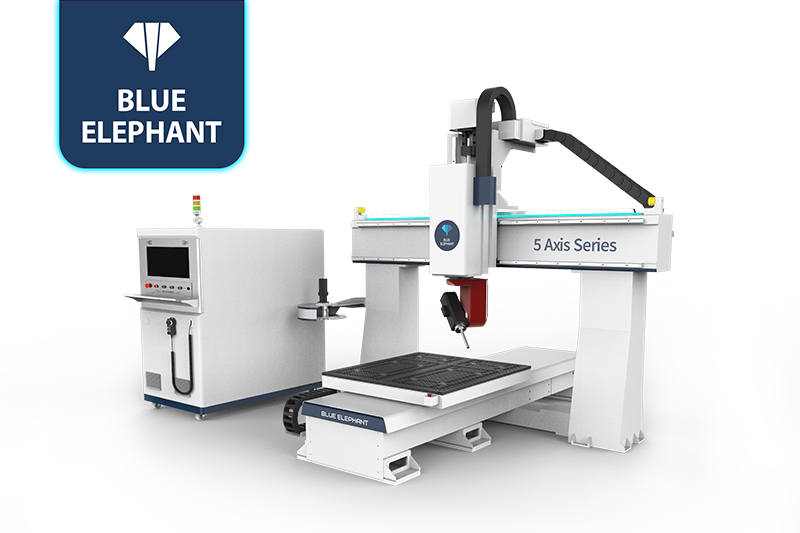

☆This is an entry-level 5 axis CNC machining center for procesiing 3D woodworking CNC projects. So it is good at carving and engraving various 3D molds, statues, etc. And it is equipped with a fixed gantry beam and a movable small worktable.

CNC Router Machines Video

Features

  • The small worktable can move back and forth, which ensures that all side surfaces can be processed.
  • It can carve and engrave multiple non-metal materials and soft metal materials.
  • Adopt high-quality or world-famous CNC parts to guarantee smooth operation and high processing quality.
  • With a carousel tool changer magazine, it can change tools automatically to increase work efficiency.

Parameters

Model ELECNC-1212
X,Y axis travel 1200x1200mm, option: 1300*2500mm; 1500*3000mm; 2000*3000mm, etc
Z axis travel 800mm
Spindle type 10KW Hiteco water cooling ATC spindle
Inverter type 15kw
Drilling bank Taiwan or Italy 5+4 vertical drills
Tool magazine Carousel type auto tool changer
Tool holder with collet HSK tool holder
Control system Syntec 610MA-E5
Driving system 1300W Japan YASKAWA servo motor and driver
Reducer Japan SHIMPO reducer
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder 5 pieces (X2,Y3)
Linear guide Taiwan #30 Linear guide with dust proof
Transmission X, Y axis: Taiwan TBI 3210/4040 ball screw
Z axis: Taiwan TBI high precision ball screw
Lubrication system Semi-auto lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Customized professional 5 axis software
Command language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 380V 3PH 50HZ/ 60HZ

Application

5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove.
In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
