High Performance Quartz CNC Stone Engraving Machine for Sale in Barbados, Nigeria, Norway

☆This is one of the most popular stone cutting and engraving machine. It is fitful for processing various kinds of stone materials, such as quartz, marble, granite, tombstone, etc. Moreover, it has the advantages of high processing accuracy, fast processing speed, and good cooling effect.

Stone Engraving Machines Video

Features

  • 3.7kw Fuling inverter has stable performance, rich combination functions, good dynamic characteristics, and super overload capacity.
  • 1300x2500mm effective working table size is big enough to process common stone plates. Moreover, the worktable size can be costomized according to customers’ needs.
  • This CNC stone machine kits are made of internationally renowned brands to ensure the machine has a long service life to the greatest extent, and it has always been the ideal choice for the stone processing industry.

Parameters

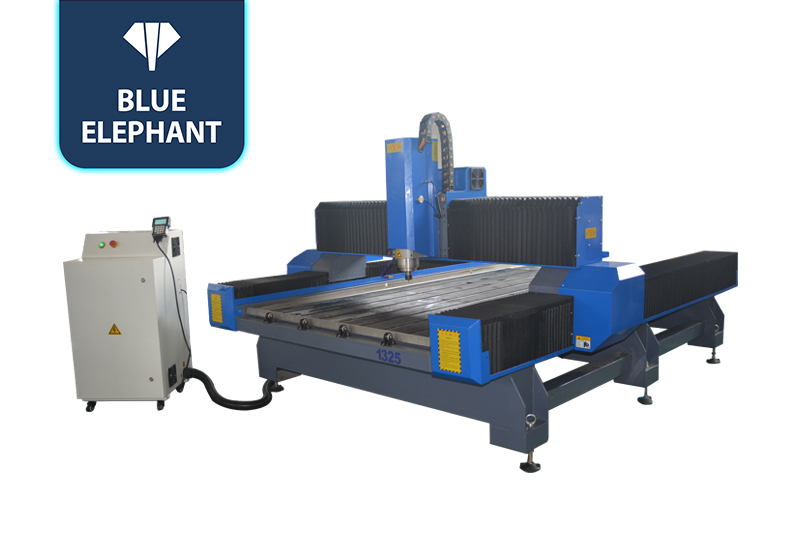

Model ELECNC1325 Stone CNC Router
X,Y axis travel 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc
Z axis travel 200mm, option: 300mm, 400mm, 500mm, etc

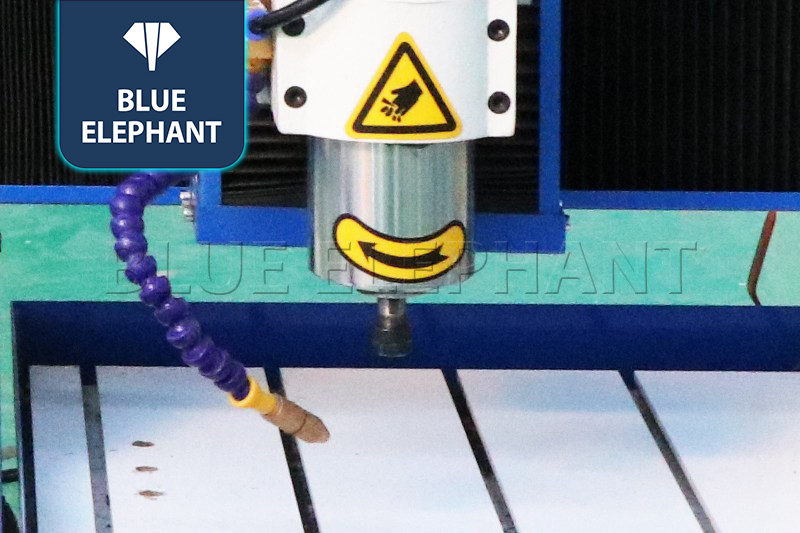

Spindle type 3kw water cooling spindle, 24000RPM
4.5kw/ 5.5kw/ 6kw for optional
Inverter type 3.7kw Fuling inverter
Control system Mach3 controller
Driving system Stepper motors and drivers
Machine structure Professional stone cnc bed, with heavy duty body more thicker and stronger
Work table slot working table, with steel water sink; stainless steel sink for optional
Linear guide Taiwan linear guide 20#
Transmission X, Y axis: Germany Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw
Dust cover Dust covers for X,Y axis, protect the rails
Cooling system Water cooling
Lubrication system Automatic lubrication system
Tool calibration Manualtool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam, Alphcam, Type 3, Ucancam, Aspire, etc
Command language G Code
Traveling speed 25m/min
Working speed 0-20m/min
Re-positioning accuracy ±0.05mm
Working accuracy ±0.05mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

Stone engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, cutting, drilling. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, glass, plastic, chemical composite board, bamboo, wood, curved surface, spherical surface, stainless steel, iron, copper, aluminum, titanium alloy and other materials. If you have the above materials need to process, stone engraving machine is definitely your best choice.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
