Top Ranked Rotary Axis 1324 Stone CNC Router Machine for Sale in Colombia, Germany, Greece

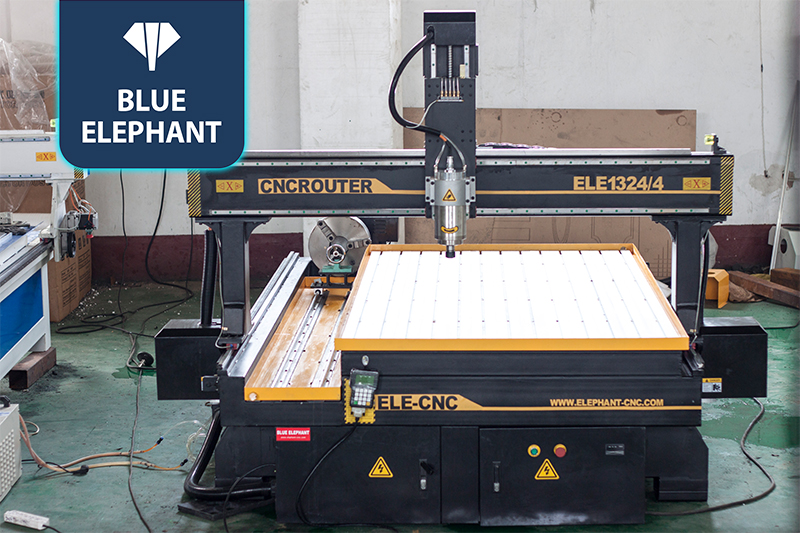

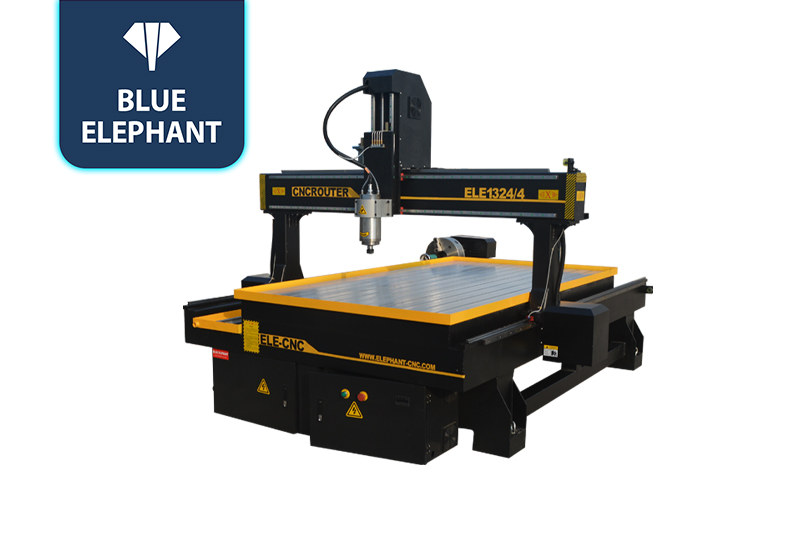

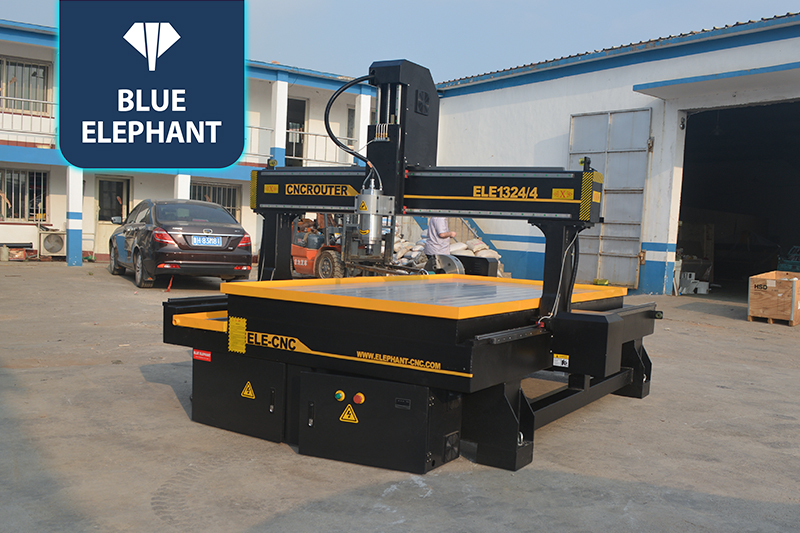

☆This is one of the typical stone CNC routers. Designed with an extra rotary device on one side of machine, it is very suitable for making cylinder projects.

Stone Engraving Machines Video

Features

  • Heavy duty machine structure can ensure higher stability during the stone carving process.
  • DSP B18 4 axis control system is an upgrade controller designed for 4-axis cnc machines, which can ensure good processing accuracy.
  • All machine parts are made of internationally renowned brands to ensure the machine has a long service life.

Parameters

Model ELECNC1324 with rotary device
X,Y axis travel 1300x2400mm, option: 1300*2500mm; 1500*3000mm; 2100*3000mm, etc
Z axis travel 400mm, option: 200mm, 300mm, 500mm, 600mm, etc

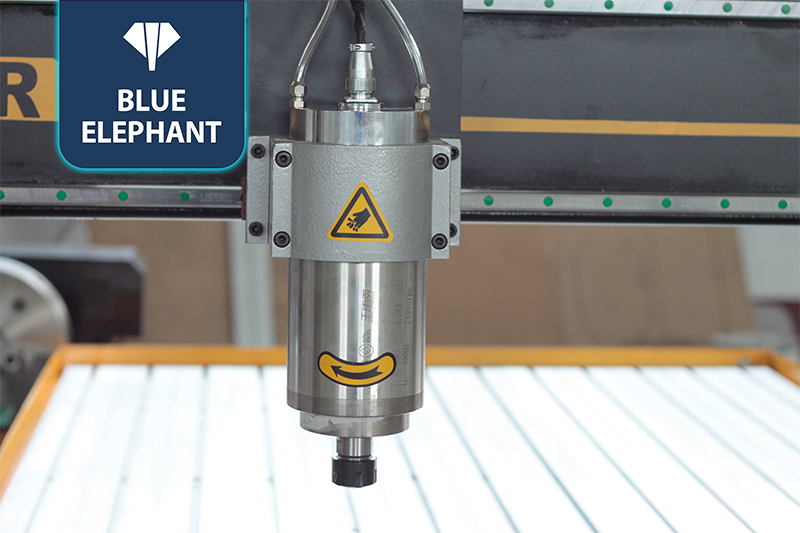

Spindle type 5.5kw water cooling spindle, ER25
Inverter type 5.5KW Delta inverter series B
Control system DSP B18 4axis control system
Driving system 850ww Japan Yaskawa servo motors and drivers
Option: 1.5kw Leadshine servo
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot work table with PVC protection
Linear guide Taiwan linear guide, 25#
Transmission Taiwan TBI ball screw 2510
Lubrication system 1.5L automatic lubrication system
Tool Calibration Manual tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam, Aspireetc
Command language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

Stone engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, cutting, drilling. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, glass, plastic, chemical composite board, bamboo, wood, curved surface, spherical surface, stainless steel, iron, copper, aluminum, titanium alloy and other materials. If you have the above materials need to process, stone engraving machine is definitely your best choice.
