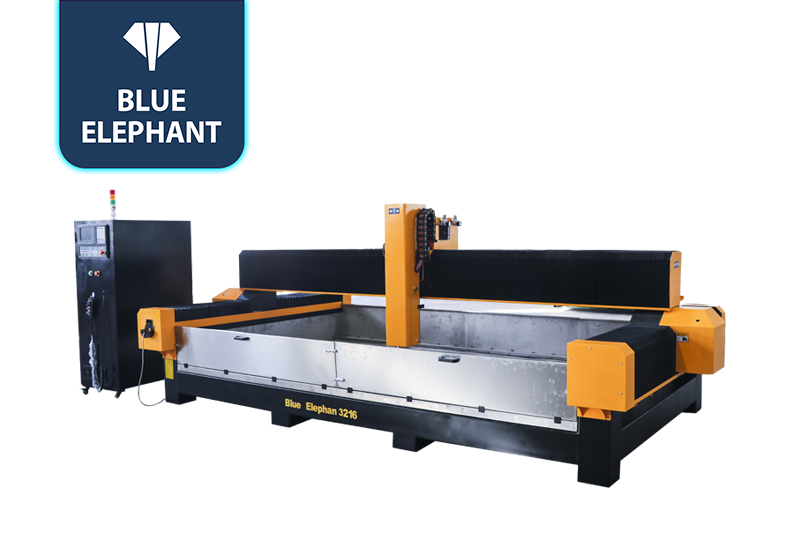

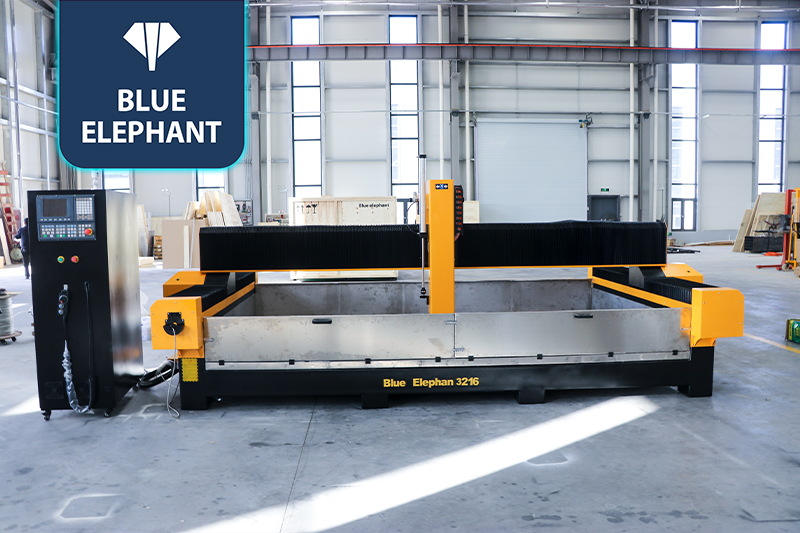

High Efficiency Large Custom 3016 ATC Stone CNC Router for Sale in Bolivia, Austria, Canada

☆This is a special designed stone cnc machine equipped with a large worktable of 3000*1600mm. It is suitable for big manufacturing factories and customers needs large output.

Stone Engraving Machines Video

features

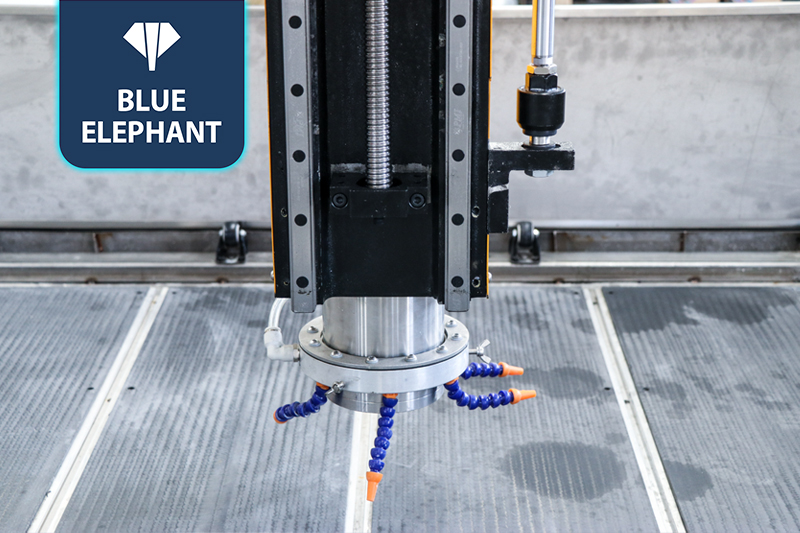

  • Equipped with HQD water cooling spindle, it can reduce the noise during the machining.
  • Manufactured with Japan Yaswaka servo motor and SHIMPO reducer, it is more stable and has a longer service life.
  • 7.5kw Fuling inverter has stable performance, rich combination functions, good dynamic characteristics, and super overload capacity.

Parameters

Items Parameter
Working area 3200*1600mm*400mm
Whole machine size 600*900*160mm (optional)
Spindle 7.5KW water cooling ATC spindle
Working table T-slot working table with water flume
Motor and drive 1000W Japan YASKAWA  servo
Control system Taiwan SYNTEC 6MB controller
Inverter 7.5KW Fuling inverter
Lubrication system Auto oil lubrication system
Reducer Japan shimpo reducer
Cooling system Water spraying cooling system

Features

  • Heavy duty machine structure can ensure higher stability during the stone carving process.
  • This stone machine accessories are made of internationally renowned brands to ensure the machine has a long service life to the greatest extent, and it has always been the ideal choice for the stone processing industry.
  • Automatic lubrication system can save labor, improve operational efficiency, and prolong the life of lubricated components.

Application

Stone CNC engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, etc. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, plastic, chemical composite board, and other materials. It is widely used in processing marble and granite kitchen countertops, bathroom countertops, wash basins, tables, drain tanks, etc.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
