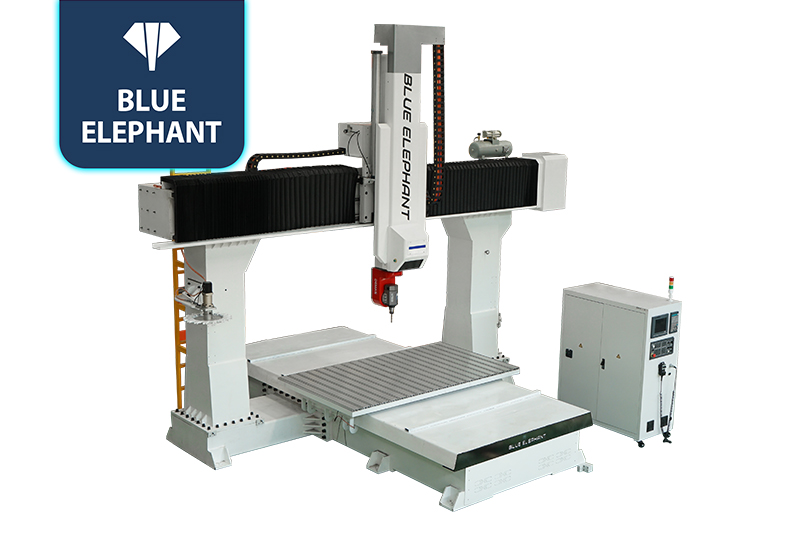

Purchase the Latest 5 Axis CNC Router for Sale at Competitive Price in Ecuador, Egypt
☆It is specially designed for engraving complex or 3D workpieces. And it has the advantages of good rigidity, good stability, high precision, easy operation, convenient use, and powerful functions.
CNC Router Machines Video
FEATURES

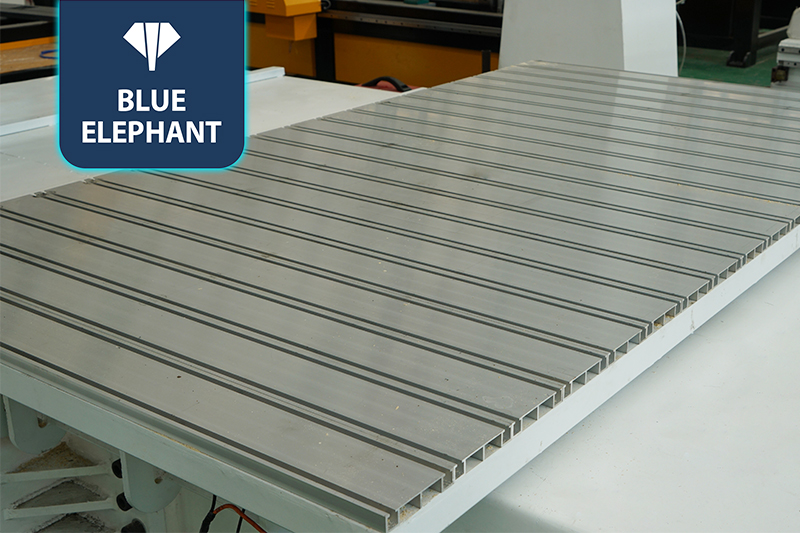

- It is easy to use by adopting a removable working table.
- The professional 5-axis controller is easy to operate and has powerful functions.
- The machine components are all from international famous brands, which greatly extending the service life of the machine.
Parameters
| Item | Description | |
| Model | ELE-2513 5 axis CNC router | |
| Movement type | Movable table | |
| X working area (MM) | 2500 | |
| Y working area (MM) | 1300 | |
| Z working area (MM) | 900 | |
| C travelling | ±213° | |
| A travelling | ±120° | |
| Beam spacing(MM) | 4260 | |
| Beam Height(MM) | 2150 | |
| Vacuum pump | Germany Becker pump | |

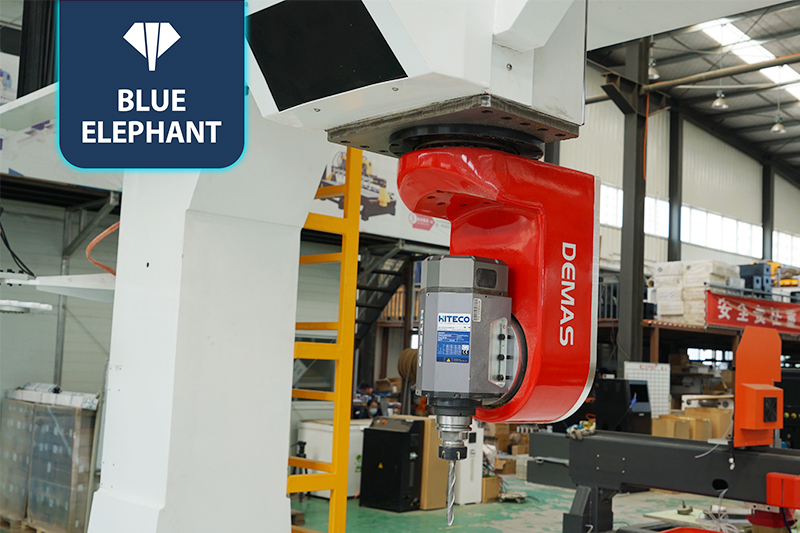

| Supplier for Double pendulum head | 10.0 KW Italian HSD | |
| Range of speeds | 22000 RPM/min | |
| Servo Motor brand | YASKAVA | |
| Table size (MM) | 1300*2500 | |
| Product fixed form | Vacuum table | |
| Tool magazine | 16 positions Carousel Tool Storage | |
| Control system | OSAI | |
| Machine size | 3600*4000*3500mm | |
| Total weight | 12T | |
| Total Power(kw) | 24KW | |
| Voltage | AC380V/60HZ | |
| Maximum lifting weights | 20T | |
| File exchange | G code | |
| Maximum speed | X Axis | 45m/min |
| Y Axis | 45m/min | |
Application
5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites.
