Top Rated 4 Processes Nesting C N C Machine for Sale in Panama, Columbia, Panama

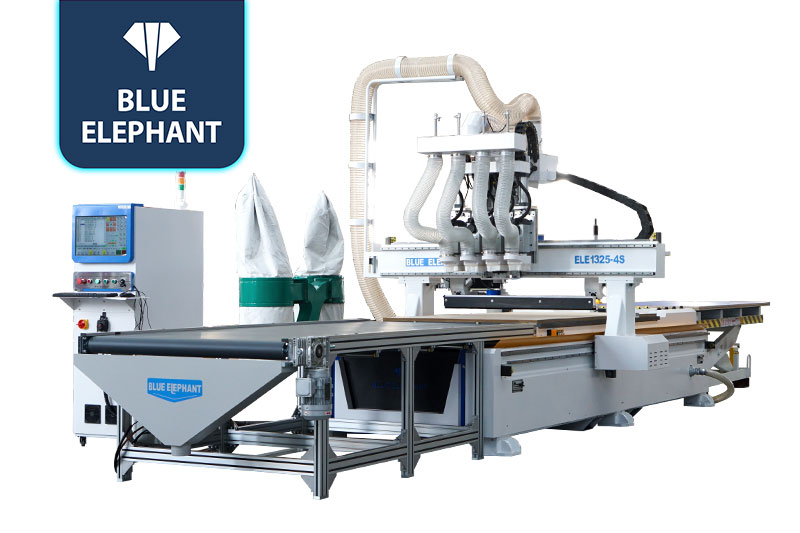

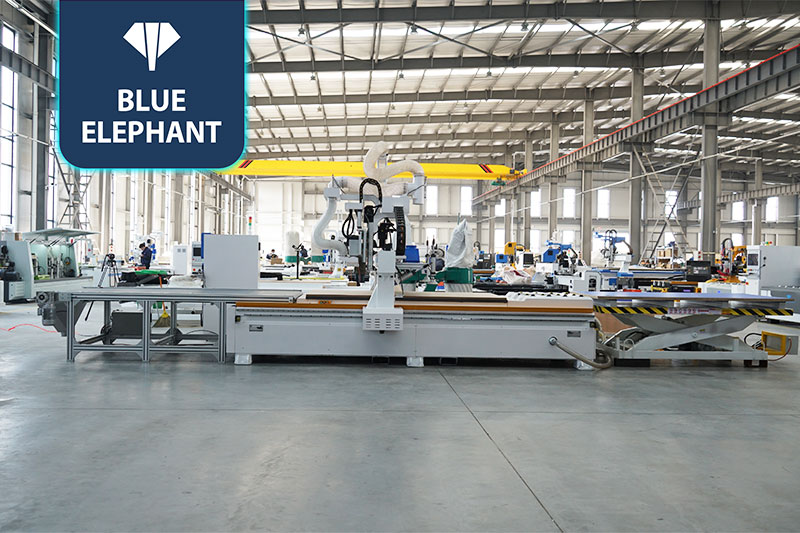

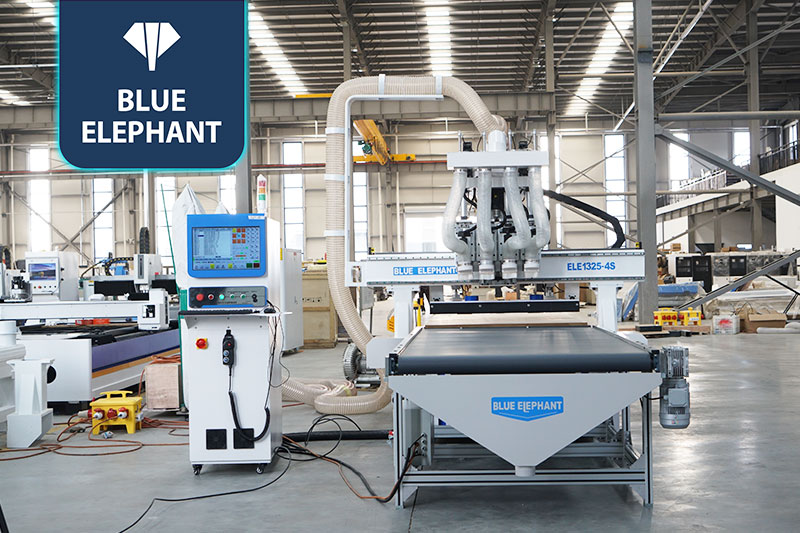

☆This automatic loading and unloading wood nesting machine has four spindles, which can switch to another automatically during operation. The automatic pushing device can push the cut boards off the worktable, which is convenient for operators to pick up the boards.
Nesting CNC Machines Video
Features
- This wood CNC machine is equipped with four spindles and only one of them can work at the same time. It can realize fast tool change during the process.
- Automatic loading and unloading platforms ensure fast loading and unloading speed and salve human labor.
- All the spindle power, worktable size, and other specifications can be customized to meet customers’ specific demands.
Parameters
| Model | ELECNC1325 pneumatic 4 heads machine center |
| X,Y axis travel | 1300x2500mm,option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc |
| Z axis travel | 400mm,option: 500mm, 600mm, etc |
| Spindle type | 2 pieces 6KW air cooling spindle, 2 pieces 4.5kw air cooling spindle |
| Inverter type | 2 pieces 7.5kw (Zero second tool change inverter) |
| Rotary device | Option: rotary device |
| Control system | Taiwan LNC control system (easy to learn interface operation and high stability) |
| Driving system | 1.5kw servo motor and driver |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy-duty body with quenching treatment |
| Worktable | Aluminum T-slot work table |
| Linear guide | #25 TaiwaLinear guide |
| Transmission | X,Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | GCode&MCode |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands.
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations.
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights.
Other wood products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers.
