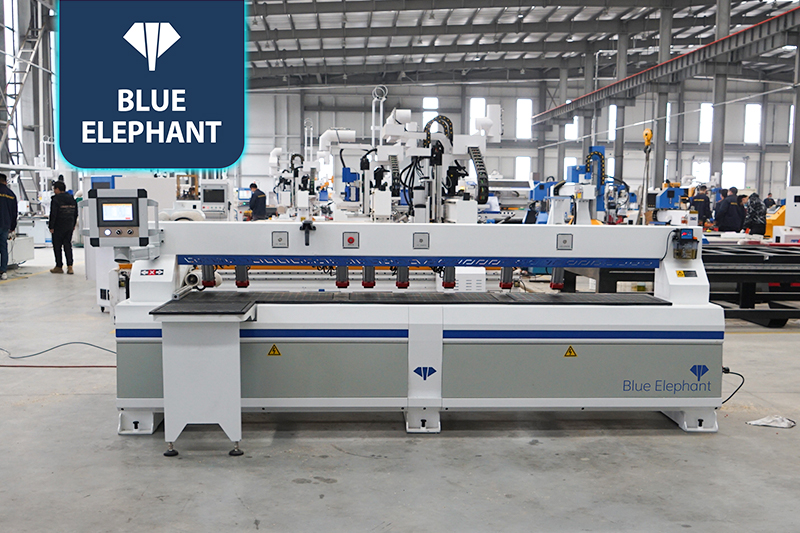

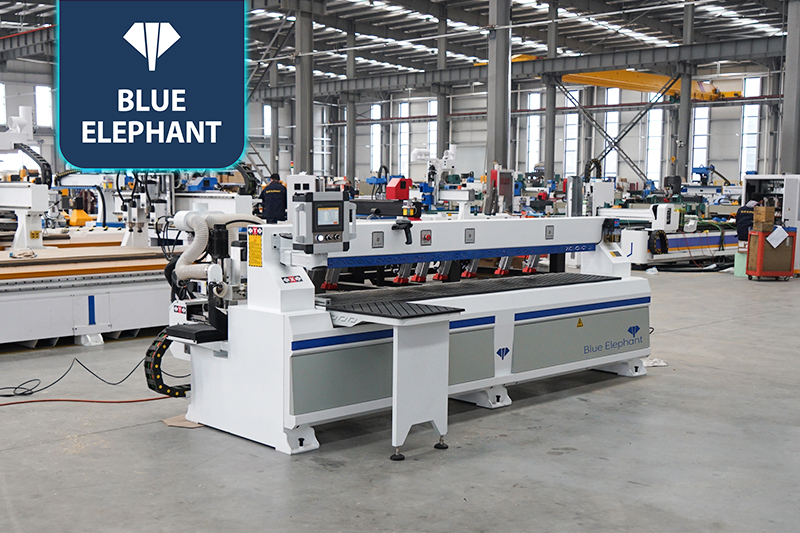

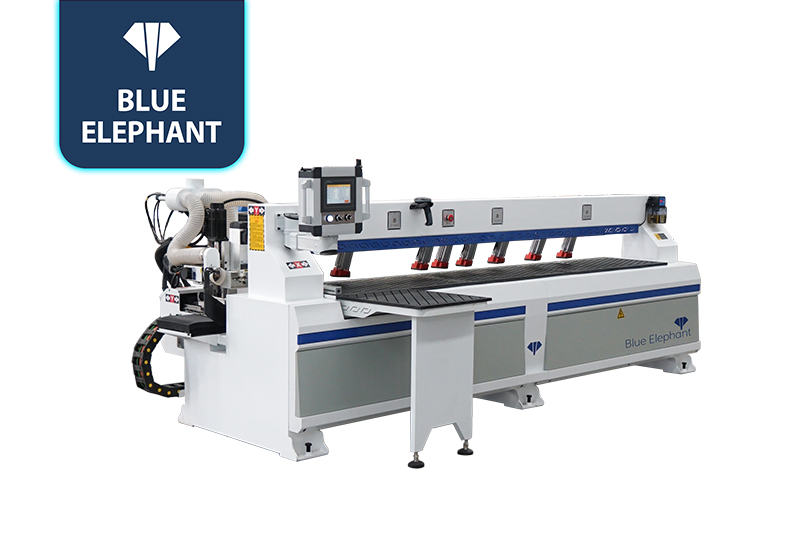

High Performance Side Hole Drilling Machine with Saw Spindle for Sale at Cost Price in Armenia

☆This wood drilling machine can complete three-in-one side holes, dowel holes, blind holes, through slots, and slots for four kinds of invisible parts. The high-power saw spindle with a diamond saw blade can provide high processing speed and good precision.

Wood Drilling Machines Video

Features

  • The wood drilling machine is provided with two drill bits and a saw blade, which can make various side holes and slots for the invisible connectors.
  • Its customized motion control system has good stability and precision.
  • The custom limits provide safety protection for the processing.

Parameters

Model ELE300
Spindle 2.2kw Changsheng air cooling spindle
Saw spindle 2.2kw JST spindle
Spindle speed 0-18000RPM/MIN
Traveling speed 10-120 m/min
Working speed 10-80 m/min
Effective travel of table 2800 mm
Height of table 750 mm
Drive and motor WEIDE servo motor and drive
Sensor BANNER
Controller QIYUE
Guild #20 square rail
Rack Taiwan JUELI
Screw TBI
Electrical elements Schneider Electric
Whole size 3600*1250*1300mm
Whole weight 1100kg

Application

Side drilling machines are mainly used to drill side holes or make slots or grooves on the side surface of wooden panels. It is designed with a simple structure and easy operation. We provide three major side drilling machine models for now. The major difference between them is the number of drill bits or saw blades that they have. All three models of side hole drilling machines have three work stations, which enables to process three panels at the same time. It greatly improves the side drilling efficiency.

side-drilling-machine-samples-1_1642986355
side-drilling-machine-samples-2_1642986379
side-drilling-machine-samples-3_1642986394
side-drilling-machine-samples-4_1642986409
