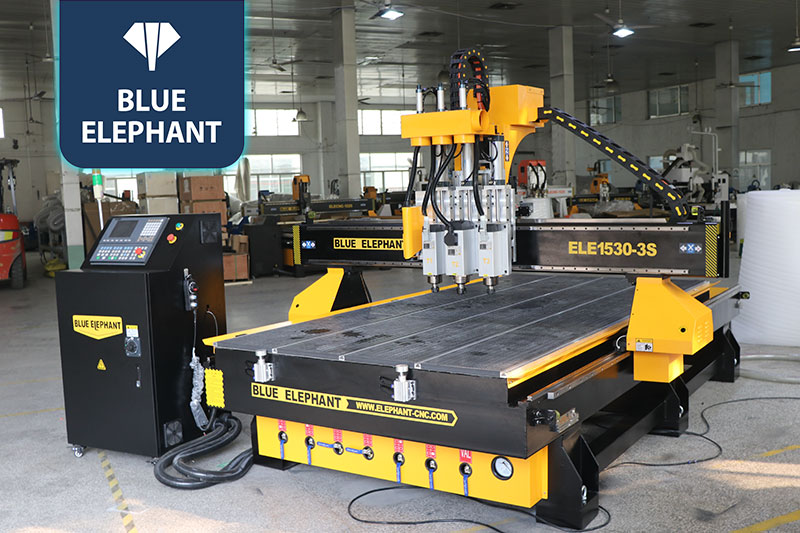

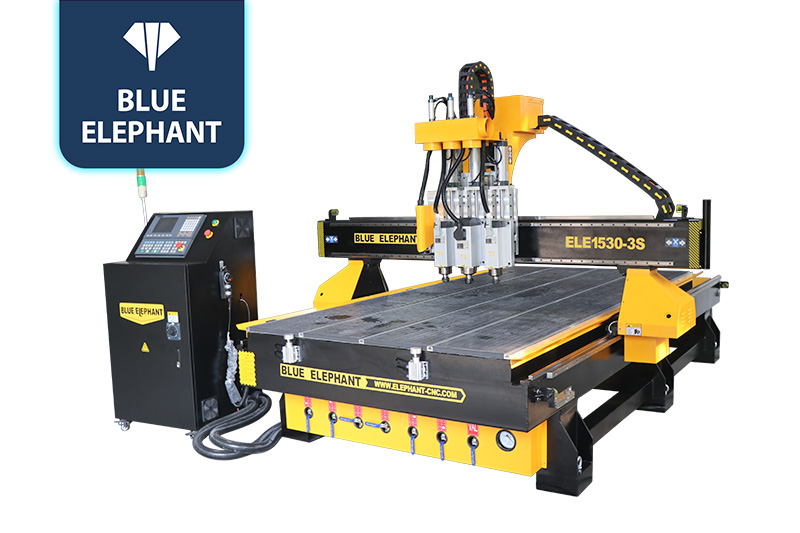

Buy Three Spindles CCD Cutting Machine at Cost Price in Singapore, Switzerland, Spain

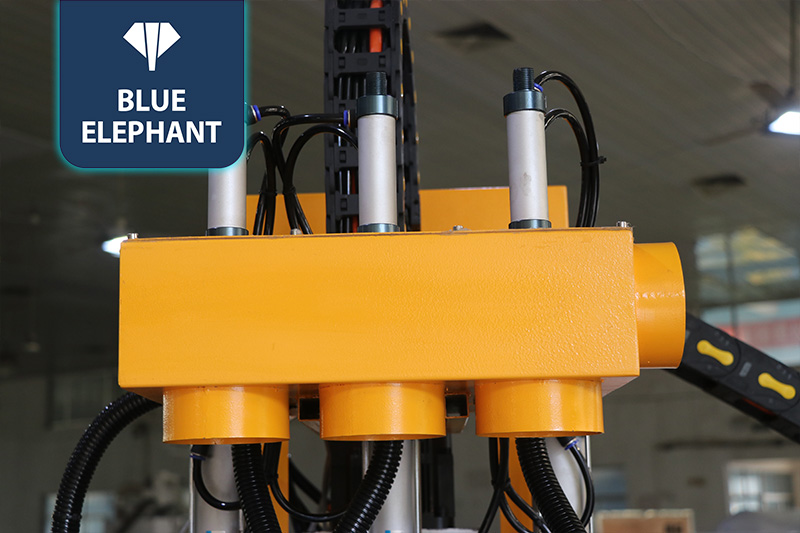

☆Equipped wit three air cooling spindles, it can meet your processing requirements at one time. Therefore, it greatly improvs work efficiency. In addition, the CCD camera can realize automatic patrolling and cutting.
CNC Router Machines Video
features
- Using the new generation CCD, it can scan the marking points quickly and efficiently.
- Manufactured with the large square tube bed, it is more stable.
- With the positioning cylinder, it is convenient to place.
Parameters
| Model | ELECNC1530-3S |
| Machine structure | 10-12mm steel plant heavy duty body |
| Work table | Vacuum& T-slot work table |
| Positioning cylinder | Optional: 5 pieces (X2,Y3) |
| Linear guide | 20# Taiwan linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam |
| Command language | G Code & M Code |
| Traveling speed | 30m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
A CCD CNC router machine can complete all the work that a 3-axis woodworking machine can do. For example, cutting and carving wood, acrylic, fiberglass, etc. In addition, the CCD camera can automatically detect the edges of the image printed on the sheet, so as to cut irregular shapes. Therefore, CCD CNC router machine is widely used for cutting printed PVC boards, KT boards and other boards for advertising purposes.
