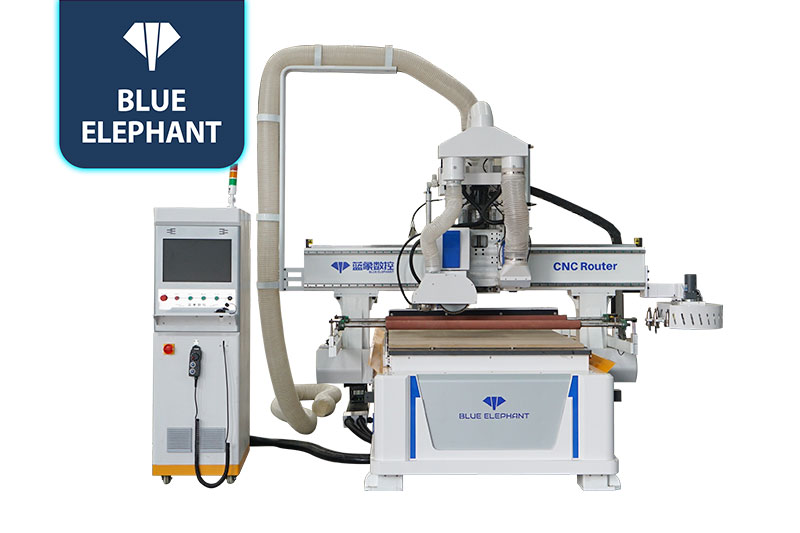

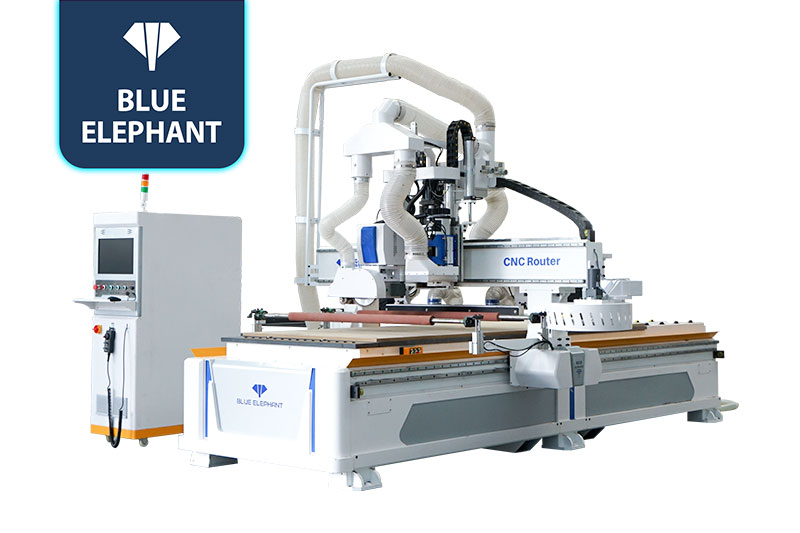

Best Selling Nesting CNC Router Cabinet Making Machine with Double Saws for Purchase to Vancouver, Durban, Sweden

☆The most outstanding feature of this nesting CNC router is the two saws, which can cut panels at any angle. This ATC CNC woodworking machine is mainly used for sizing door panels and cutting panel furniture. All three axes use original linear square rails, which have good stability, long service life, and high precision.

Nesting CNC Machines Video

Features

  • It is equipped with two saws, a small one and a big one, for cutting panels in the opposition direction quicky without edge breakage.
  • With a 9.0kW ATC spindle, it can cut and engrave boards with high efficiency and change tools automatically without stopping the cutting process.
  • Optional automatic loading and unloading platforms can be selected to improve the work efficiency for furniture making.

Parameters

Model ELECNC1325 4×8 Auto Feeding Furniture making machine with 2 Saws
X,Y axis travel 1300x2500mm,option:1500*3000mm;2000*3000mm;2100*4000mm,etc
Z axis travel 200mm
Spindle type HQD9.0KW ATC air cooling spindles
Cutting saws Two spindles + two Saws, Small saw for 3-5mm cut, the big saw can cut max 55mm thick panel; The cutting directions are opposite
Inverter type 11kw Fuling inverter

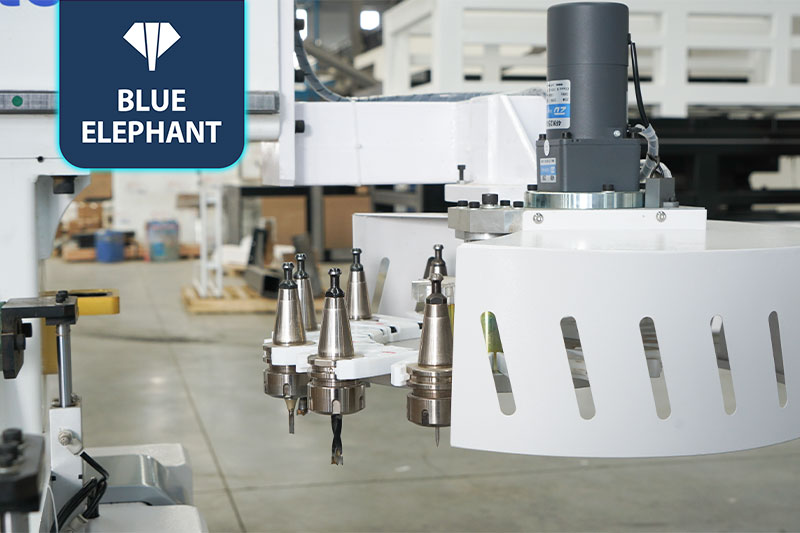

Tool magazine 12 pieces Linear type auto tool changer
Option: Carrousel type auto tool changer
Tool holder with collet ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system Taiwan Syntec 60CBcontrol system
Driving system Taiwan Syntec 1000W servo motor and drivers, total 5 sets
Reducer Japan Shimpo reducer
Machine structure Heavy-duty welded steel frame
Work table Full-page vacuum working table
Linear guide TaiwanLinear guide
Transmission X,Y axis: Taiwan Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L Auto lubrication system
Tool calibration Auto tool sensor
Cables Germany Igus cables with CE, UL certificate
Compatible software Artcam, Hisoon, etc
Command language G Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
Working accuracy ±0.03mm
Working voltage 220V 3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

It is mainly used to cut various wooden boards. In terms of processing functions, the cutting machine mainly includes cutting, punching, grooving, and other processes. The nesting CNC machine is widely used in the furniture industry such as cabinet doors, wardrobe doors, solid wood doors, paint-free doors, solid wood composite doors, and suite doors.

sample1_1643075598
sample2_1643075605
sample3_1643075614
sample4_1643075625

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
