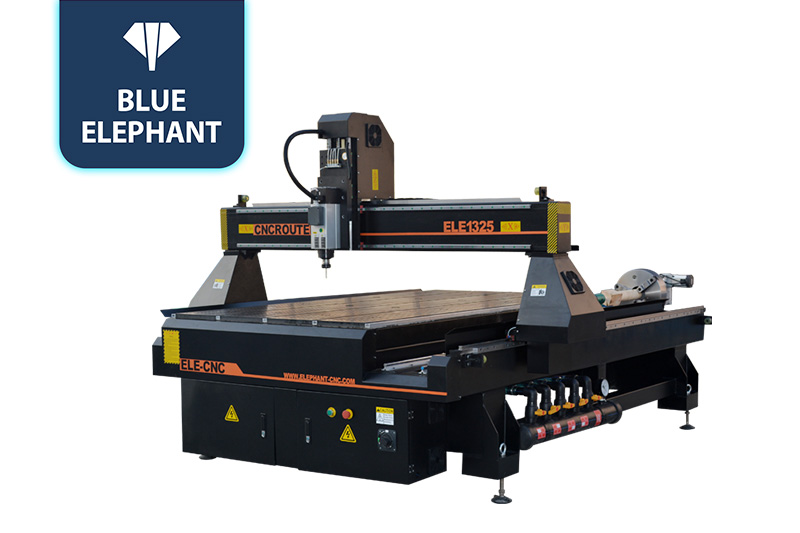

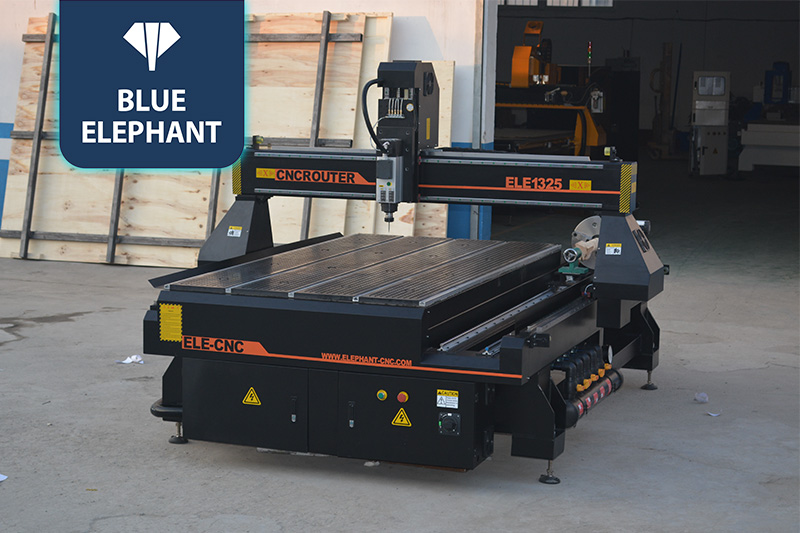

High Efficiency 4×8 C N C Router Machine with 4th Axis Rotary for Sale in Italy, Vietnam, Spain at Affordable Price

☆This rotary axis CNC machine is widely used to process wood furniture, crafts, advertising signs, letters, handrails, columns, statues, etc. Its built-in control cabinet saves space and is suitable for small workshops. All parts adopt high-quality products to ensure safe and reliable operation.

Rotary Axis CNC Router Machines Video

Features

  • The control cabinet of this CNC router machine is built under the machine bed, which saves cost and space.

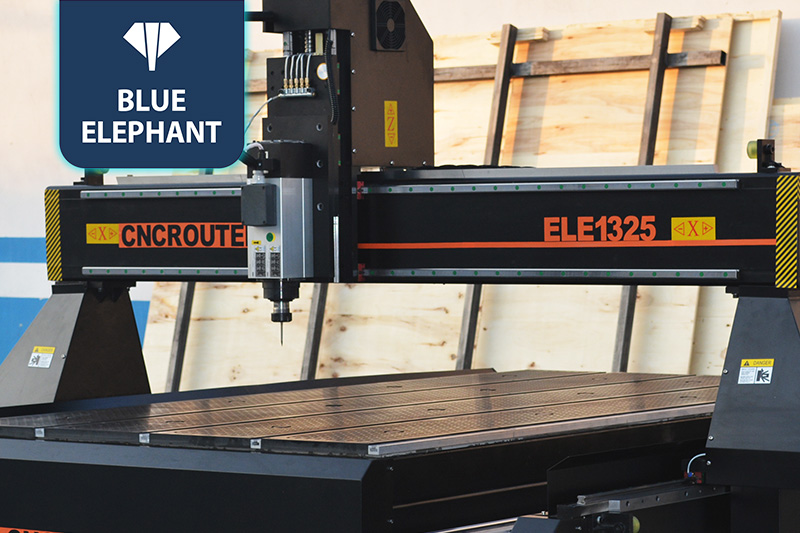

  • Both X and Y axes adopt precise helical rack and pinion transmission method, which has fast and efficient transmission speed.

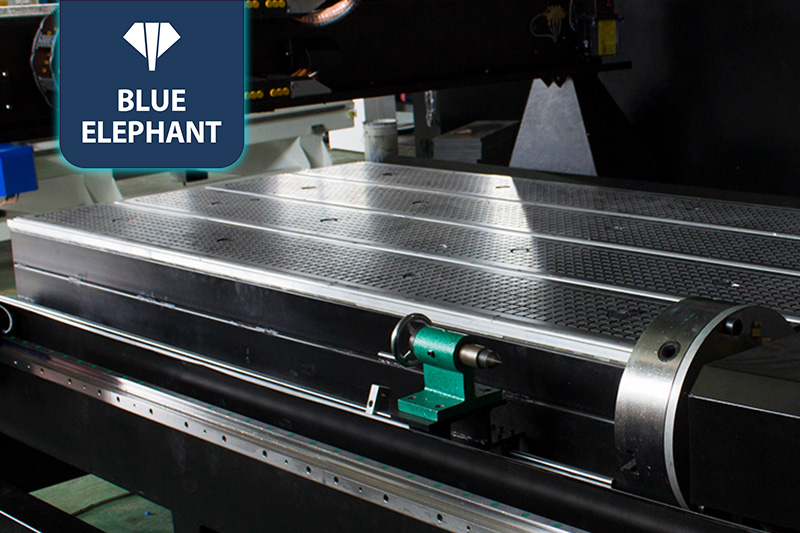

  • The vacuum worktable has a strong adsorption capacity to fix the panel firmly on the table during operation, preventing the panel from sliding or moving during operation.

Parameters

Model ELECNC1325-R
X,Y axis travel 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel 200mm, option: 300mm, 400mm, 500mm, 600mm, etc
Spindle type 3KW air cooling spindle, ER25
Inverter type 3.7kw
Tool holder with collet ER25 collet: φ4, φ6, 1/8, 1/2
Control system Mach 3
Driving system 750W Japan YASKAWA servo motor and driver, 5 sets.
Reducer Japan SHIMPO reducer
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder 5 pieces (X2,Y3)
Linear guide Taiwan linear guide with dust proof
Transmission X, Y axis: Taiwan / Germany Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system Semi-auto lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam, Alphcam, Type 3, Ucancam, Aspire, etc
Command language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

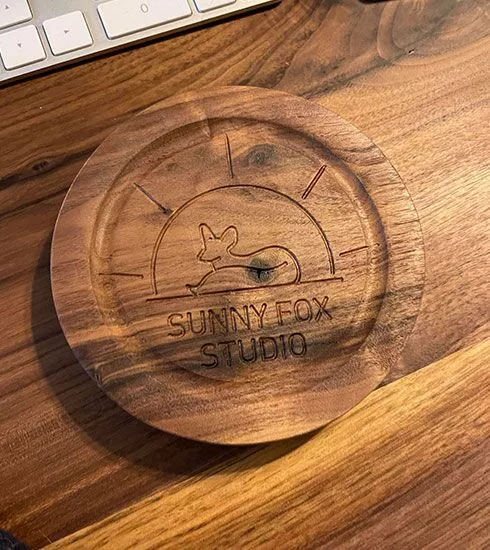

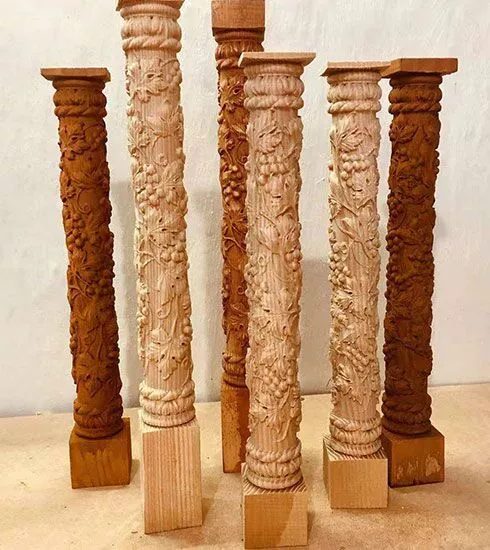

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
